Cracking the Code: What Black Smoke Really Means in Diesel Engines EPS1

When a diesel engine starts spitting out thick black smoke, most people panic. They think injectors. They think turbo. They think the engine’s done for. But here’s the truth: black smoke isn’t one problem , it’s a symptom. And if you don’t understand what creates a good combustion, you’ll never know why it went bad in the first place.

The Triangle of Combustion

Every diesel engine lives and dies by three elements, injector spray, air, and compression.
Miss one, and you’re burning money instead of fuel.

A perfect combustion is a marriage of these three forces. The injector sprays a fine mist of diesel at the right time, in the right amount. The air supplies the oxygen to ignite it. Compression brings the heat that finishes the job. When that harmony breaks, you get soot, smoke, and the unmistakable smell of wasted fuel.

That’s what black smoke really is: unburnt carbon escaping your exhaust.

The Injector’s Handwriting

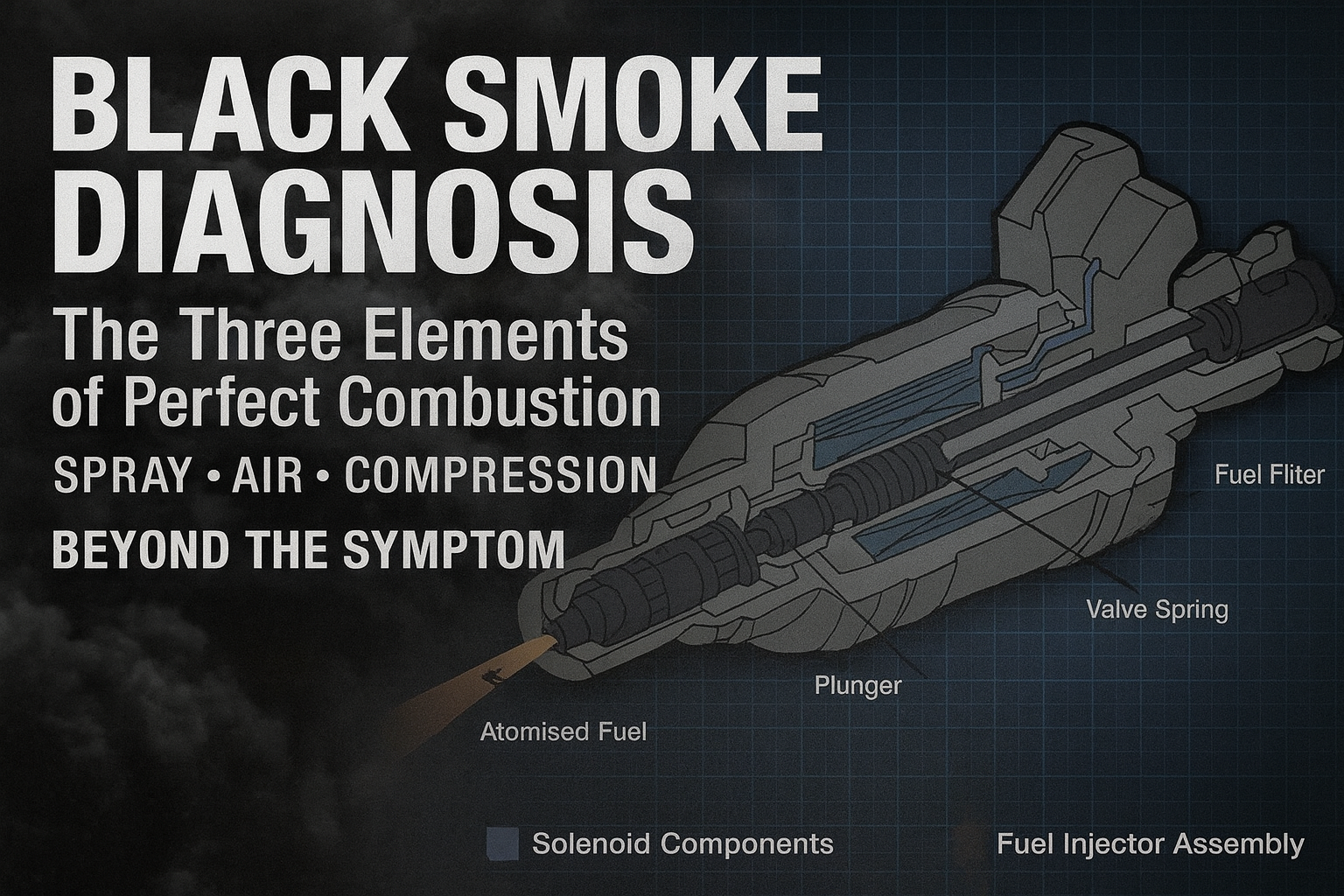

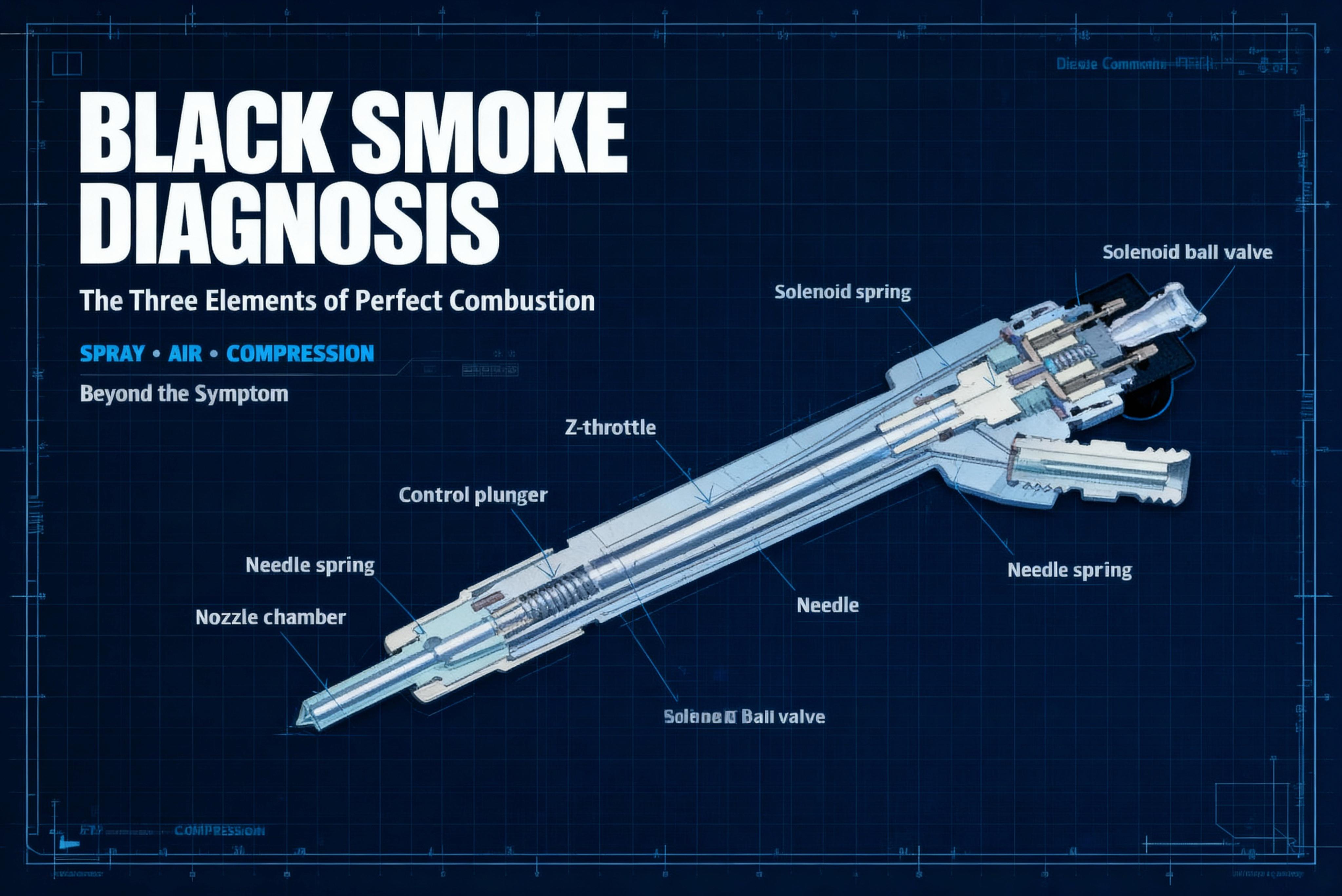

Your injectors don’t just deliver fuel, they write combustion.
When they fail to atomiSe properly, the mist turns into droplets. Droplets burn unevenly, sluggishly, and leave behind soot. You’ll see smoke under throttle, rough idle, maybe a chug that wasn’t there before. Timing or spray pattern off by just a few degrees, and your engine’s rhythm collapses.

So before you chase every other part, start with the spray. Poor atomisation equals poor combustion. Simple as that.

Air: The Invisible Ingredient

Next comes oxygen, the quiet partner in every diesel’s success.
Starve it, and even perfect injectors can’t save you. Blocked filters, boost leaks, or a lazy turbo all choke the airflow, leaving fuel hanging in the chamber with nowhere to go. That hanging fuel turns into smoke, heavy, black, unmistakable.

Then there’s the EGR. It’s supposed to reduce emissions, but when it jams open or half-sticks, it pushes exhaust back into the intake. That’s air without oxygen, and the moment that happens, the burn goes bad. Massive smoke, especially under load, is your dead giveaway.

Compression: The Heartbeat of Diesel

Diesel doesn’t rely on spark, it relies on compression.
That squeeze of air ignites fuel naturally. Lose it, and nothing burns clean.

Compression leaks can come from anywhere, a worn valve seat, tired piston rings, or more commonly, the injector seat. In Australia, that last one’s notorious because so few workshops have the right tool for re-cutting seats properly. Even a micro leak there disrupts the combustion balance, sending clouds of black smoke trailing out the back.

When diagnosing, always ask:

1. Has the compression (blow-by) been checked?

2. Has the turbo and boost pressure been verified?
   If both pass, then look at the injectors.

Think System, Not Symptom

Black smoke isn’t just an aesthetic issue, it’s your engine’s way of waving a red flag. But the fix isn’t always the most expensive part on the list. The key is understanding the system, not just the symptom.

Check air. Check compression. Then, and only then, test injectors.
Each of these elements tells a story, together, they reveal the truth behind that smoke.
